SIMPLE PULSE RATE PROJECT


The video shows our heartbeat  detector in action.

By placing your finger over the  sensor on the project kit, immediately your heart beat is sense.

The beeper and the LED indicates   the heart beat sensed. You may   connect the output provided to a digital counter to count your heart rate.
Is a simple low cost heart beat detector.

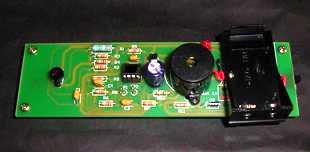

Click here to view the board.

Click the Download Button to get the Free schematic just by completing a simple survey.

OR Buy schematic at USD 5.00 only!
